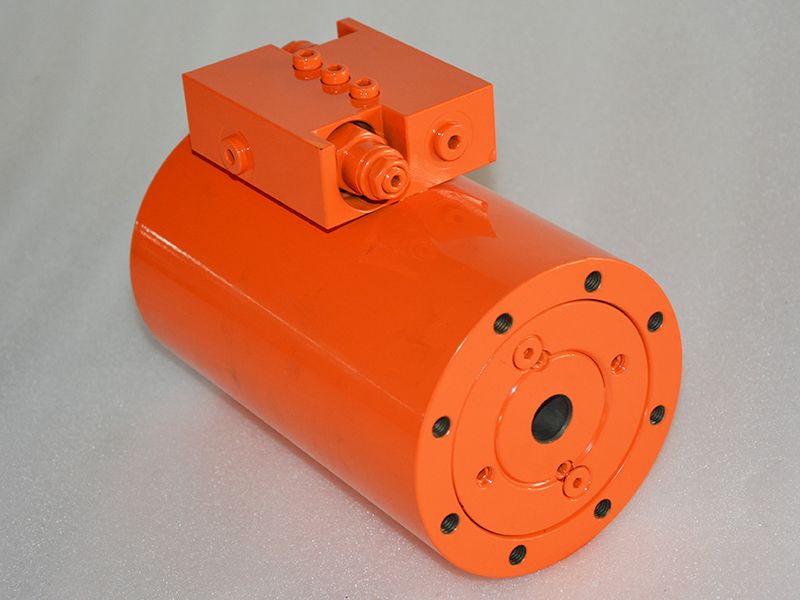

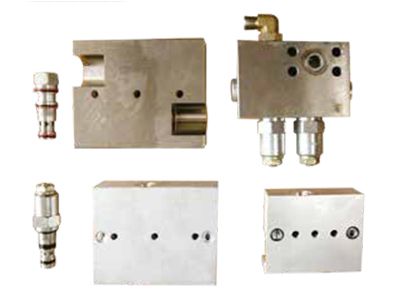

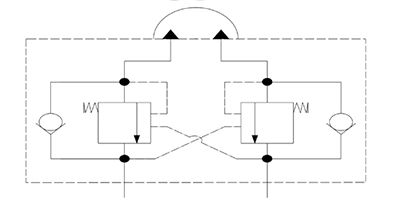

For our hydraulic rotary actuators LS1 and LS2 series, as well as the LS3-19-180 and LS3-28-180 models, balance valves with a pilot ratio of 3:1 are utilized, and their overflow pressure setting is 21MPa.
For other series, the balance valves have a pilot ratio of 2.5:1, with an overflow pressure setting of 25MPa.
The valve cores are made from renowned brands, and the valve bodies are available in two materials: steel and aluminum alloy, with steel as the default option.
In addition, we offer customized production of balance valves in steel, aluminum alloy, without a balance valve, and other custom options.
Seal requirements for different environments: standard temperature environments, low-temperature environments, and other specialized applications.
Custom Design
According to the actual needs of customers, finite element analyzes are carried out on the newly designed products.
Detailed mechanical analyzes of the designed structure is based on the well-functioning finite element analysis software and high-performance computer.
Through finite element analysis, more than 60% of the problems that may occur in can be dealt with in the design stage.
Our Design

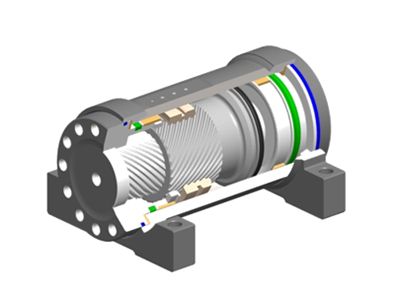

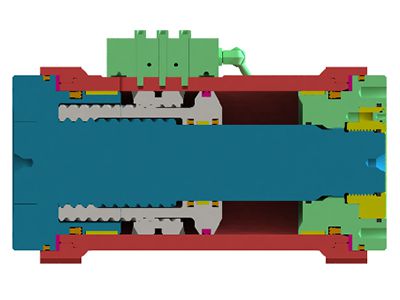

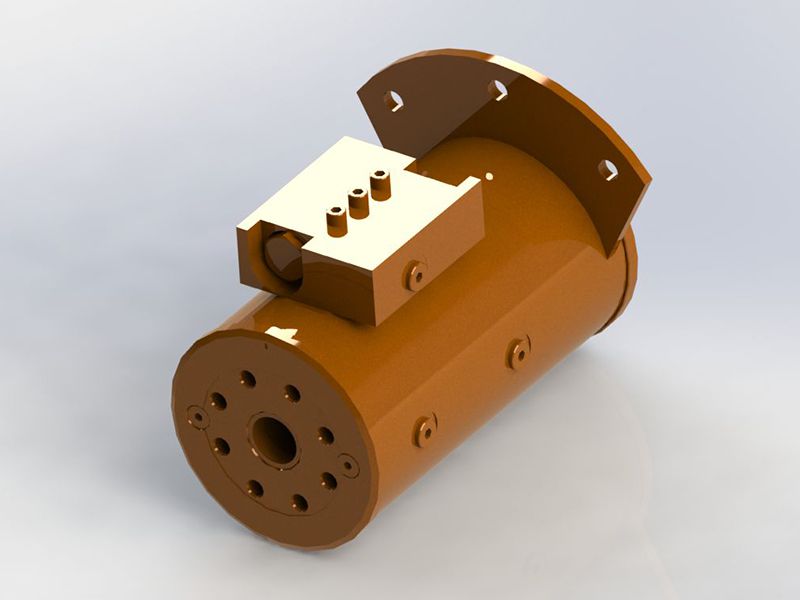

Helical Hydraulic Rotary Actuator

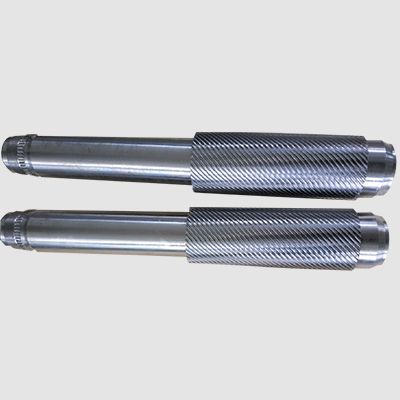

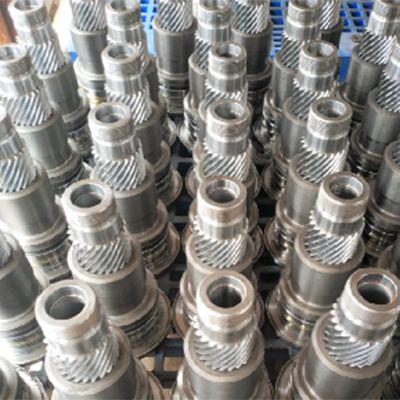

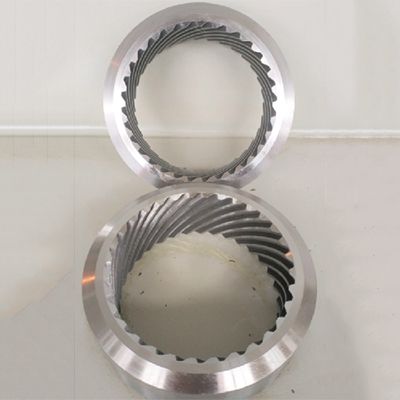

This design is based on a multi-helical gear system, where the piston's linear motion is converted into rotational motion. The longer the linear motion of the piston, the greater the rotational motion.
Our rotary actuators are designed for simplicity but require precision manufacturing to ensure functionality and brand reliability.
They are particularly suitable for applications such as aerial work platforms, wet spray machines, rock drilling trolleys, and excavator attachments.

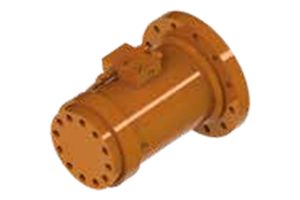

Single Flange Output

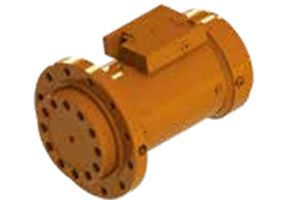

Double Flange Output
Double Flange Output
Single Splined Shaft Output
Double Splined Shaft Output

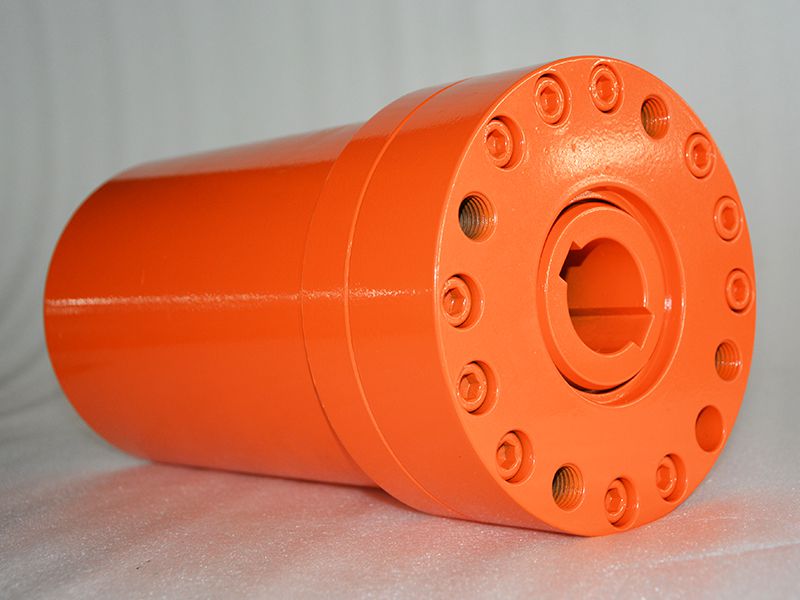

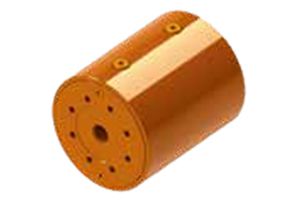

Through Hole Output

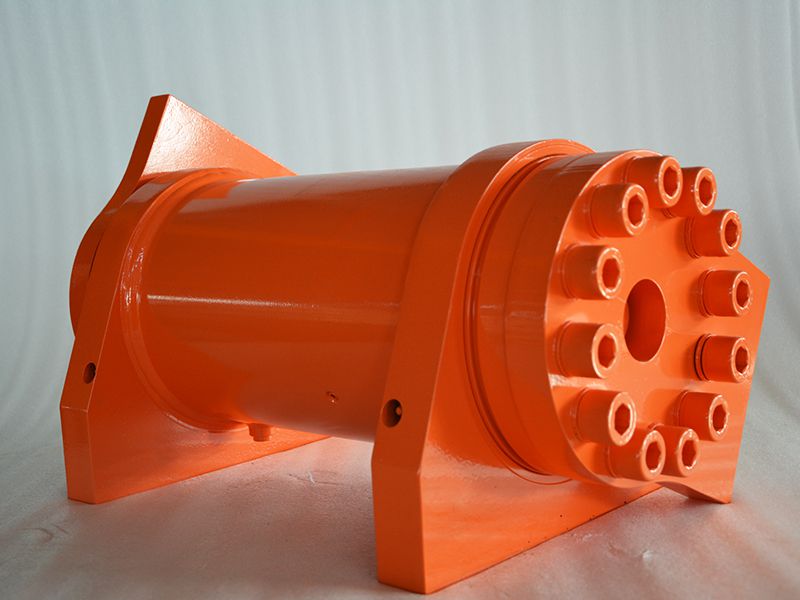

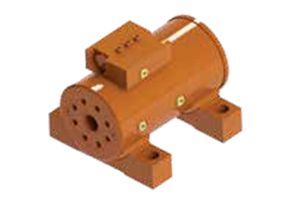

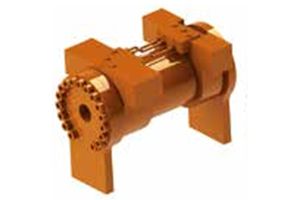

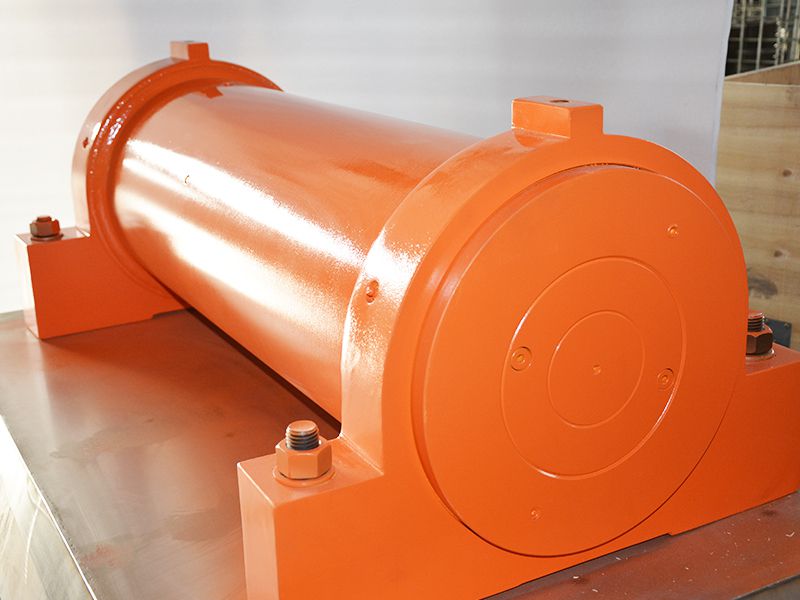

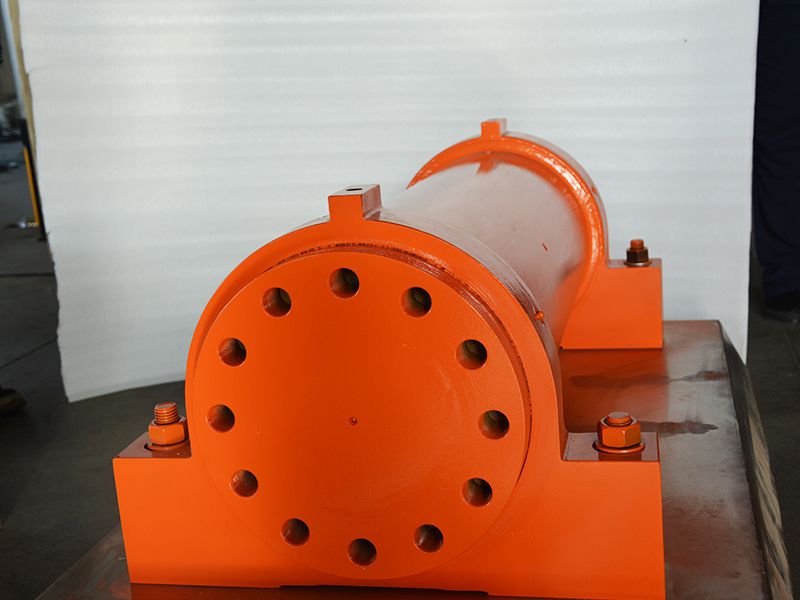

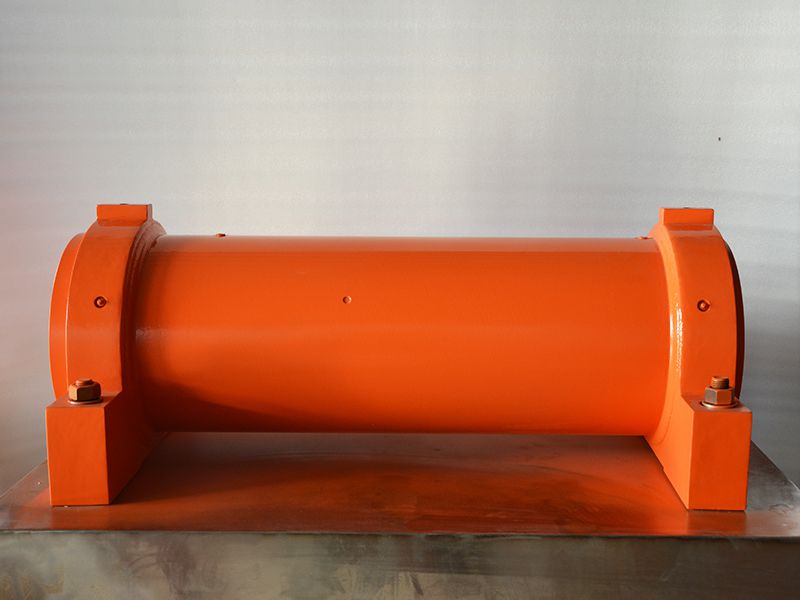

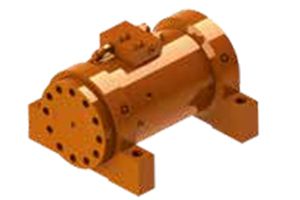

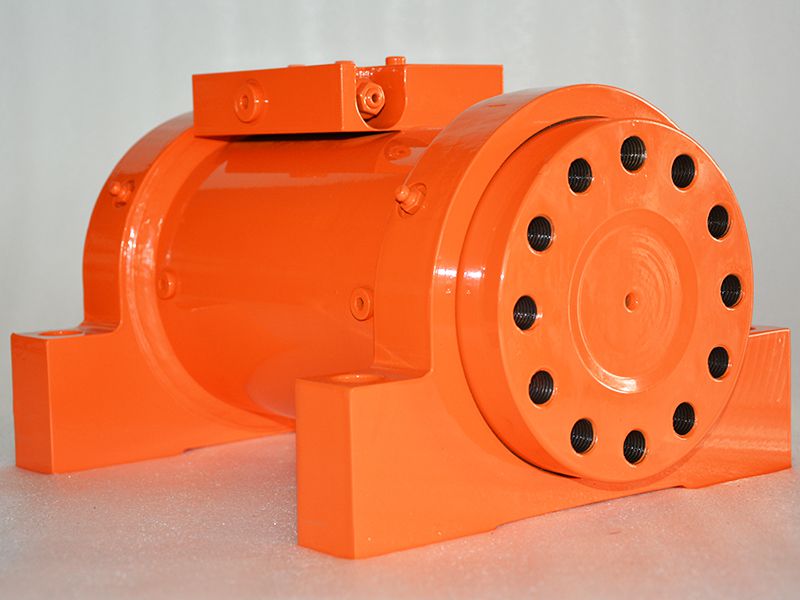

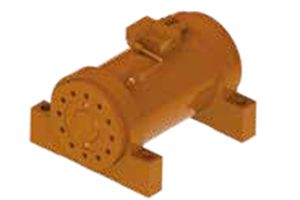

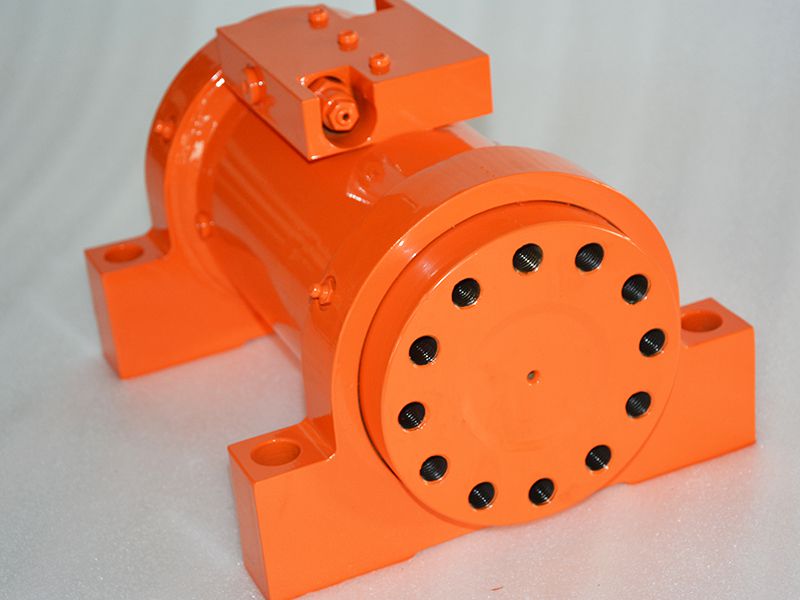

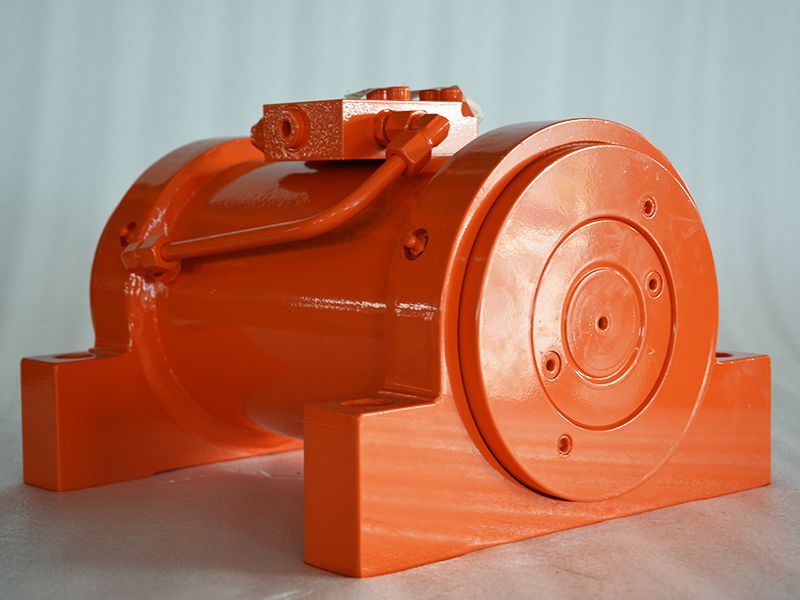

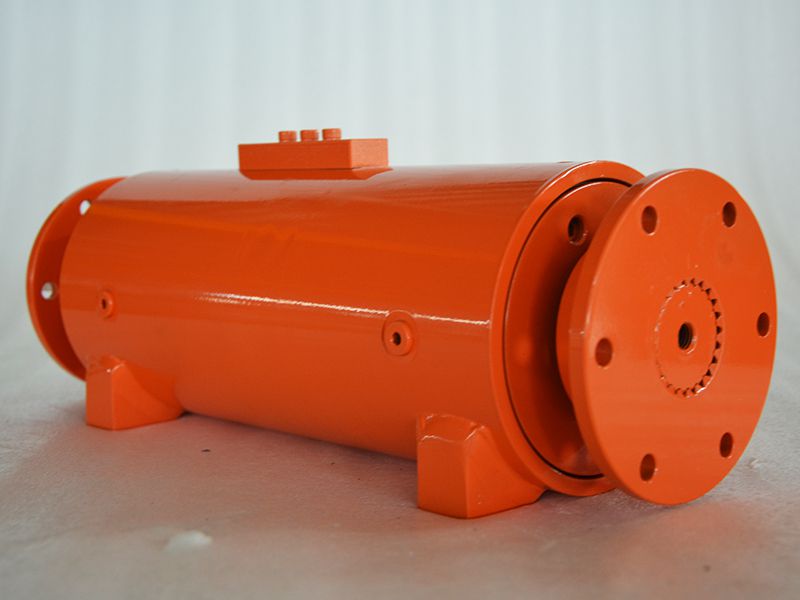

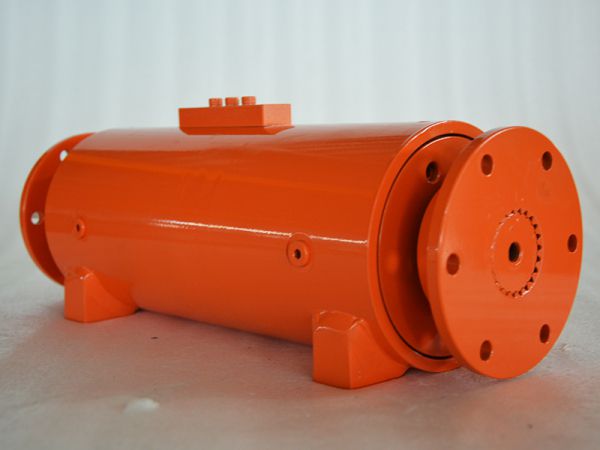

Foot Mounting

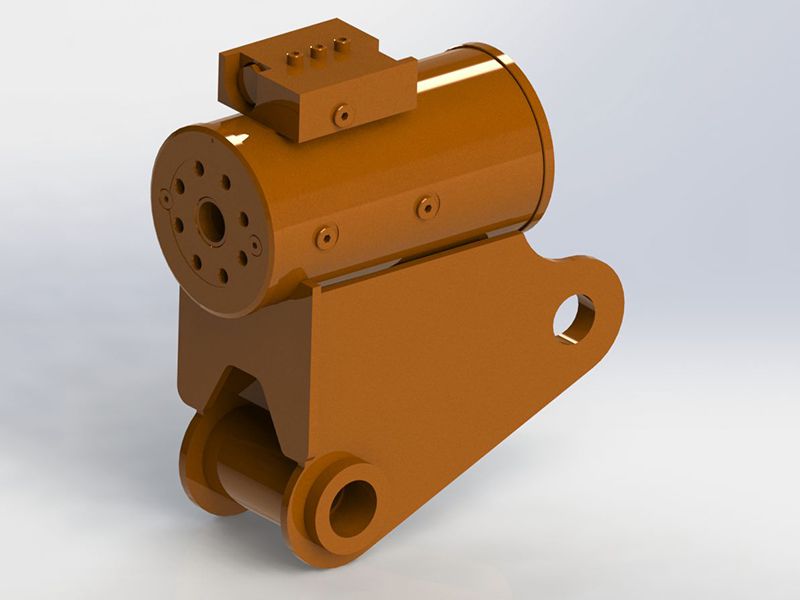

Clevis Mounting

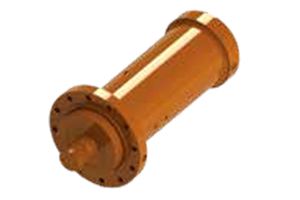

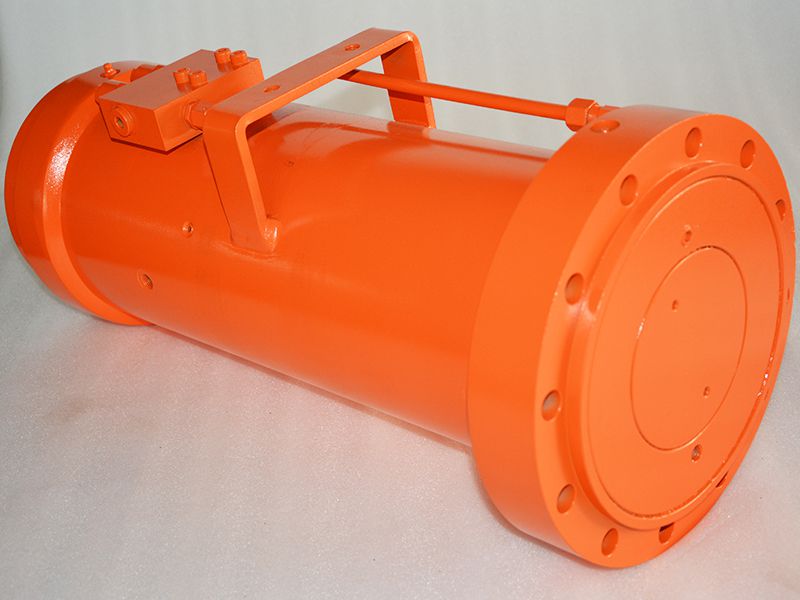

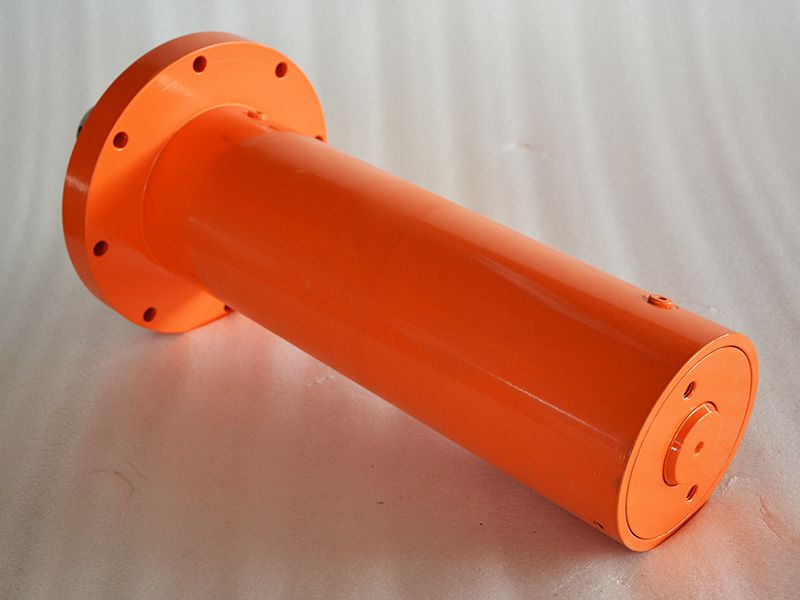

Front Flange Mounting
Rear Flange Mounting

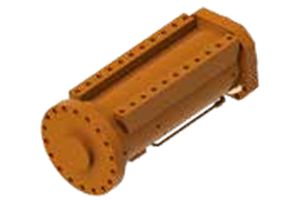

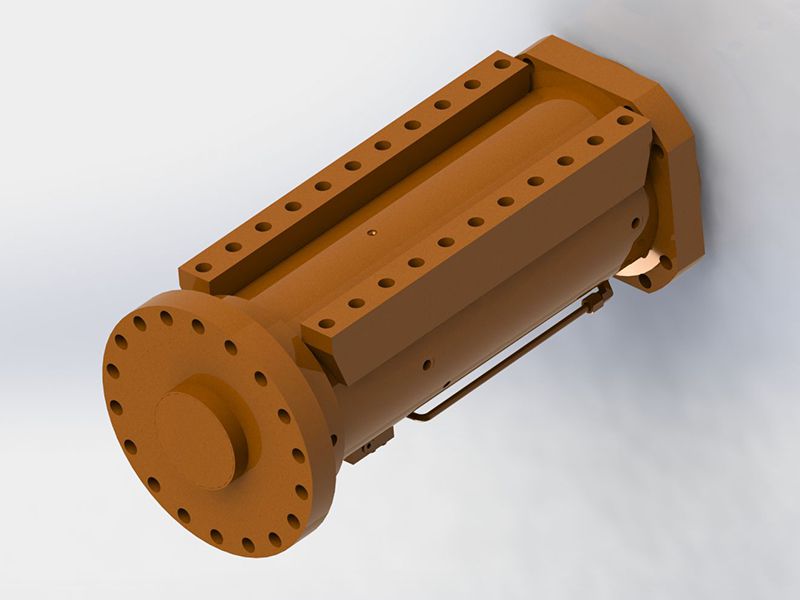

Rail Mounting

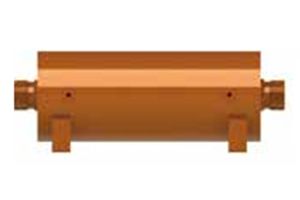

Welded Foot Mounting
