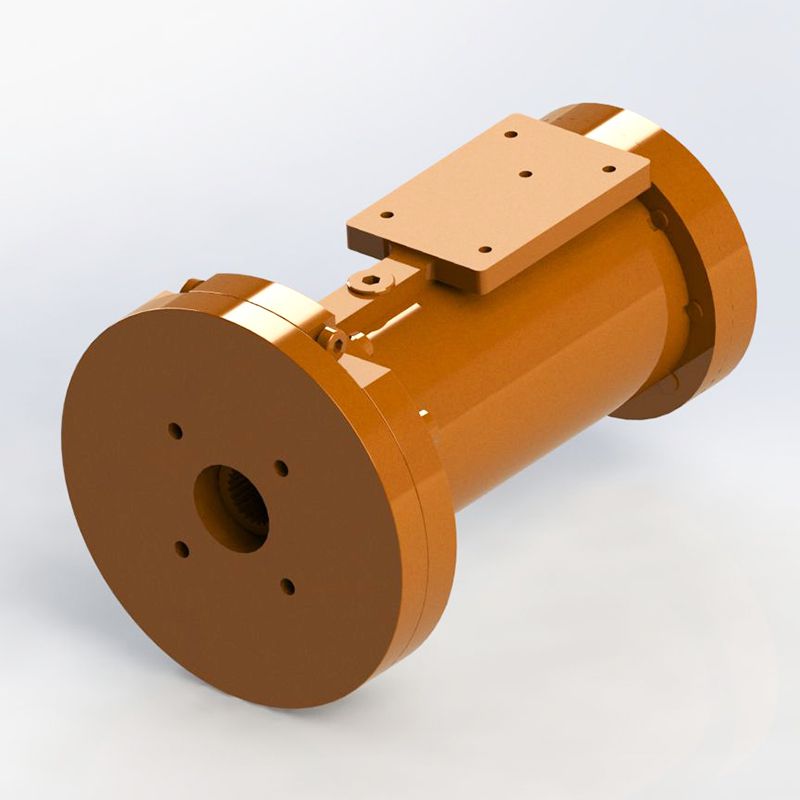

Helical Hydraulic Rotary Actuator, LS7 Series
Rotary actuator for the control of valves
The helical hydraulic rotary actuator LS7 Series is a specialized rotary actuator designed exclusively for valve control, featuring adjustable angles tailored to customer requirements. Both starting and total angles can be modified as needed.
The series offers both double-acting and single-acting options, with the latter incorporating a built-in spring, while the former follows a standard mechanism.
Specifications
| Model | 30 | 60 | 240 | 320 |
| Operating Pressure [bar] | 140 | 140 | 140 | 140 |
| Drive Torque [Nm] | 3000 | 6000 | 24000 | 32000 |
| Displacement [cc] | 967 | 790 | 1180 | 1870 |
| Weight [kg] | 69 | 50 | 416 | 545 |
| Rotating Angle [°] | 90-95 adjustable | 90-95 adjustable | 90-95 adjustable | 90-95 adjustable |
Applications

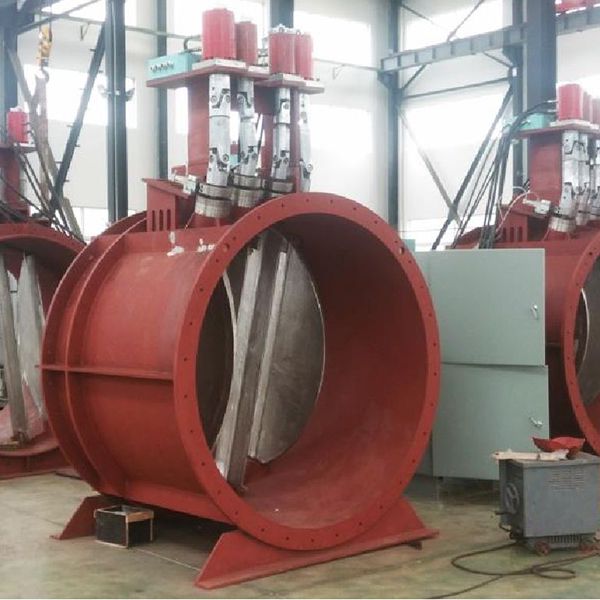

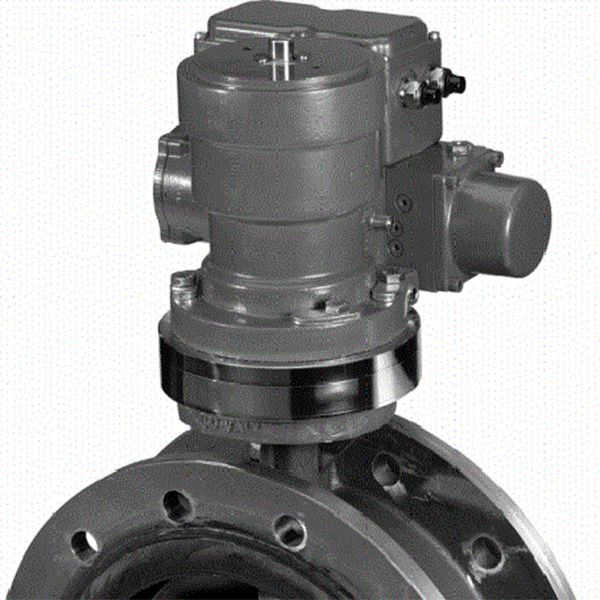

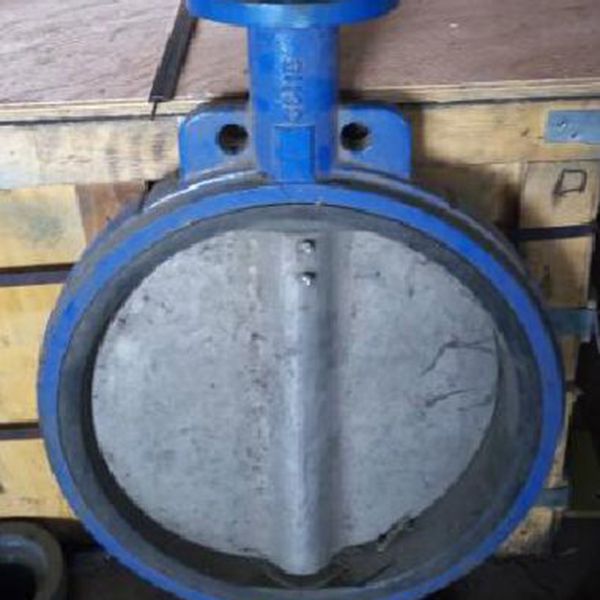

Valve control, 90-degree valve switches.
Features
- Through hole output allows direct connection to valves.
- High power density, capable of providing high drive and holding torque within a small and compact space.
- Convenient installation and setup.
Output Type
- K - Through Hole Output
Mounting Options
- F - Front Flange Mounting
